Necessary tools

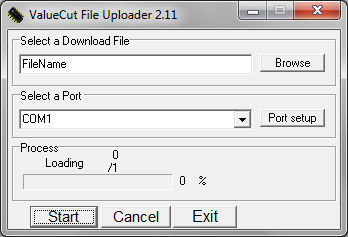

In order to be able to transfer your new ValueCut firmware, the ValueCut File Uploader application is required.
After connecting your cutter, please select the appropriate port setting, and browse for your new firmware.
The latest current firmware can be downloaded below this article. Make sure to download the corresponding firmware for your model size!
VC-600: Mutoh_J4-61A-v3.03-03
VC-1300: Mutoh_J4-132A-v3.03-03
VC-1800: Mutoh_J4-183A-v3.03-03
Release date: 27 april 2017
Current version - 3.03GA
NEW

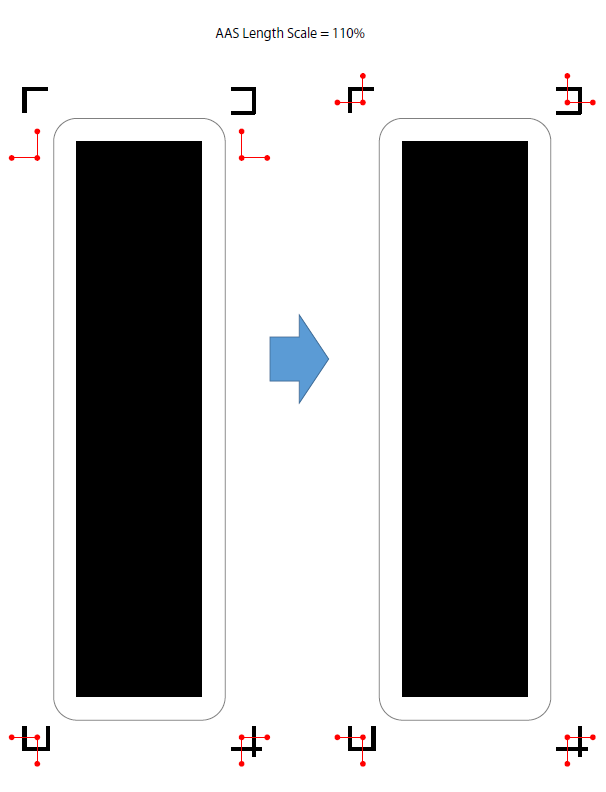

- AAS Length/Width Scale has been added to the MISC menu.
This menu selection allows you to adjust the reading distance between the registration marks. This menu option is a useful function in case the registration mark detection can not not reach the printed registration marks.
Such a situation often occurs when small registration marks were utilized.
The AAS Scale does not scale the plot data. AAS Scale corrects the feed amount of media and CR at the time of Reg mark detection.
Plot data is adjusted relative to the detected Reg mark.
Version history
Release date: 30 april 2015
3.02A-02
To enlarge our detection possibilities on a wider range of media types, a specification modification was made concerning the AAS registration mark detection.
| Old method of registration detection - previous firmware | New method of registration detection - new firmware |
With regard to this modification, several parts changed as well. Therefore, there will be no part compatibility between old type and new type parts, so please make sure that old type and new type parts will not be mixed.
If you make a mistake on the parts combination, our ValueCut plotter will be unable to detect the registration marks appropriately.
Please check below serial number information's, and each part combinations.
Main Board / CR Board / Firmware => change all 3 parts as a set!
| VC-600 | EVC2U0481～ |
| VC-1300 | EVC5U0995～ |
| VC-1800 | EVC7U0314～ |
< Maintenance Parts Combination >
Old type (before above serial number)
| Main board | ME-G290077700G | 2 in 1 Cutter main board |
| CR board | ME-G29004369G | AASII carriage board assembly |
| Firmware | Ver2.15 |
New type (after above serial number)
| Main board | ME-G290090000G | 2 in 1 Cutter main board |
| CR board | ME-G290089990G | AASII carriage board assembly |
| Firmware | Ver3.02A |

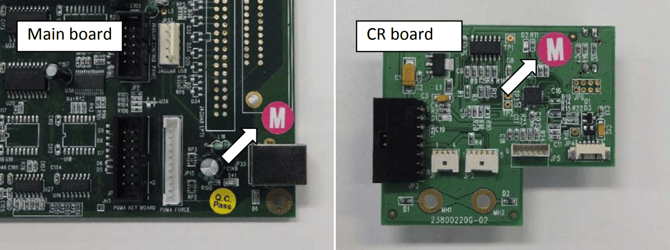

Important note: an "M" mark sticker will be present on the new type of boards

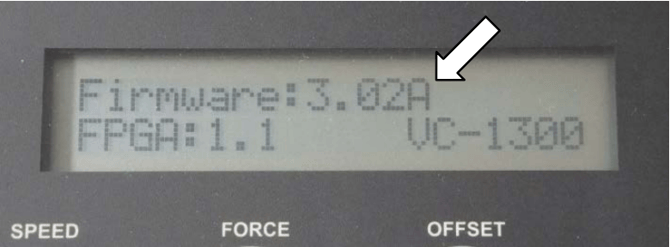

| Note An "A" indication informs you that the firmware is compatible for new parts only. If no "A" indication is labeled, the boards are dedicated for older model types. |
Release date: 22 feb 2013
2.15
- First firmware version
